NEW ERA UNOBAT | Sports Flooring
The New Era UnoBat system is a packable high quality flooring system which can be installed over an uneven sub‑floor. This system incorporates a black evazote polyethelene foam rubber base for higher performance characteristics to the higher A4 level of the standard.
The system comprises the 22 mm Junckers solid hardwood board, secretly nailed to a kiln dried softwood batten, which is supported by foam backed strong polypropylene cradles. Fine levelling of the system takes place between the cradles and the battens. There are a range of heights available from 75 mm to 439 mm. Choice of batten centres depends on requirements as to sports performance and loading capacity.
Looking for specs and documentation? Download our specs below
Features
PERFORMANCE |
Area-elastic according to EN 14904 class A4 |
USE |
All types of sport Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
FLOORBOARD TYPE |
Prefinished 22mm 2-strip solid hardwood floor |
SUBCONSTRUCTION |
Single layer batten system |
BATTEN CENTRE, C/C |
411,1mm |
REQUIRED SUBFLOOR |
Flat or uneven |
CONSTRUCTION HEIGHT |
75mm - 439mm |
JUNCKERS 25 YEARS FATIGUE TEST |
✔ |
SANDING AND RE-SEALING |
Yes to bare wood 8-10 times |
SUITABLE FOR UNDERFLOOR HEATING |
Yes |

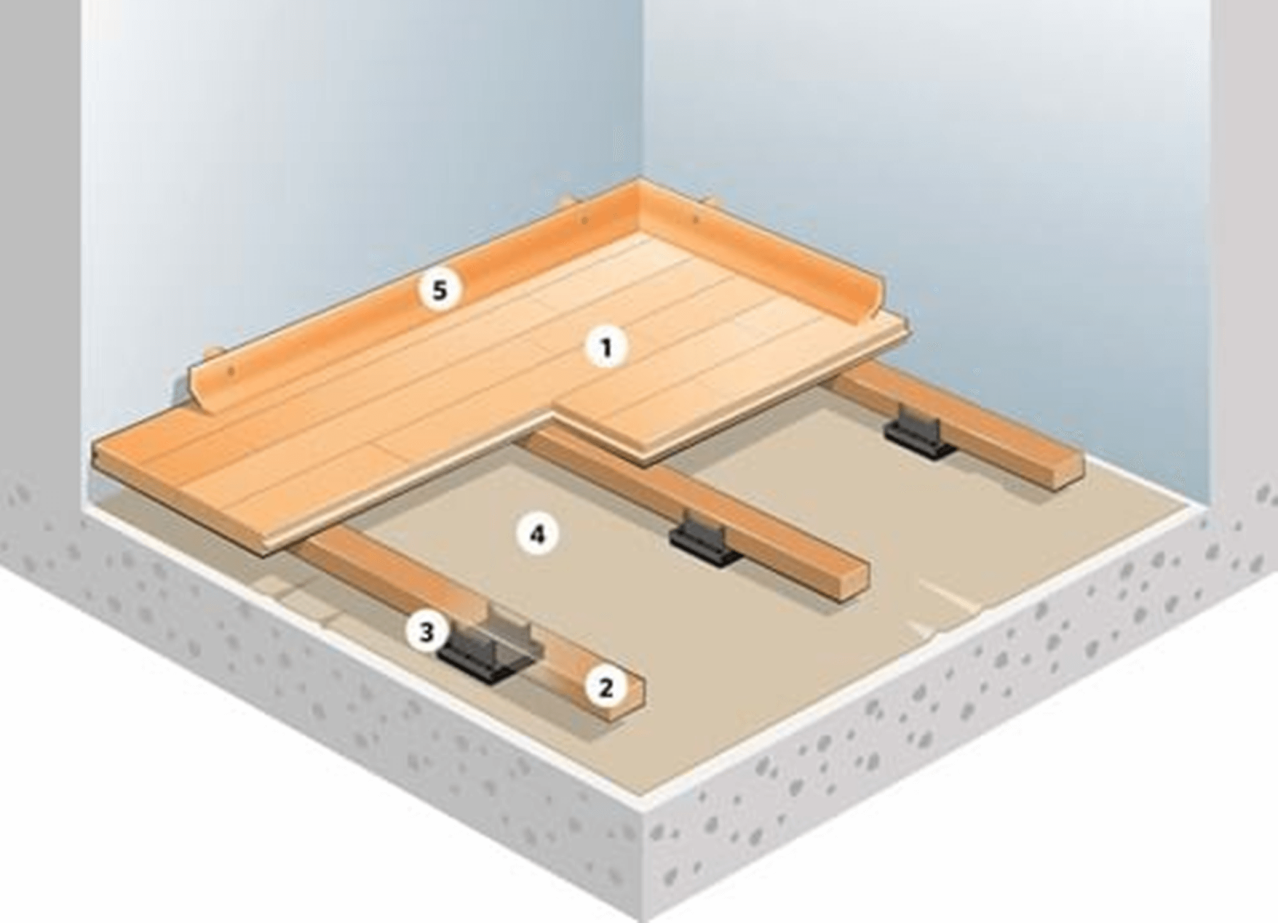

SYSTEM COMPONENTS
Minimum construction height, including 22 mm thick floorboard - 74 mm
1. 22 x 129 x 3700 mm floorboards
2. New Era batten system: 36 or 48 mm x 45 mm x 1800 mm
3. Polyproplylene cradles with 10mm foam
4. Polythene vapour check
5. Skirtings
|
|
REQUIREMENTS EN 14904:A4 |
TEST RESULTS |
SHOCK ABSORPTION |
≥ 55 < 75 % |
65% |
VERTICAL DEFORMATION |
≥ 2.3 < 5.0 mm |
2.8 mm |
BALL BOUNCE |
≥ 90 % |
91% |
FRICTION |
≥ 80 ≤ 110 |
~ 85 |
ROLLING LOAD |
≥ 1500 N |
2500 N1 |
POINT LOAD |
None |
4500 N ~ 450 kgs2 |
2) Junckers test with 100x100mm point load.
More information
CHOICE OF FLOORBOARD
A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.
The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech sports floors are dried using Junckers unique press drying method. Our ash and maple sports floors are kiln dried.
Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.
We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
